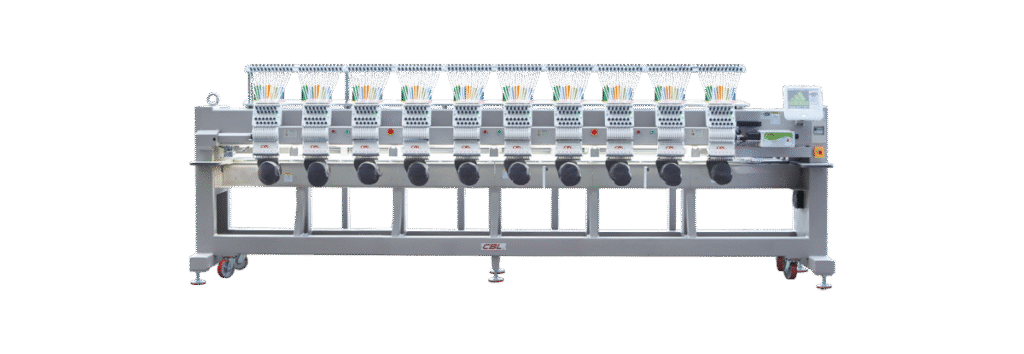

CBL offers a full range of multihead cap embroidery machines up to 12 heads. CBL launched the first 12 head tubular machines in China to meet mass production requests.

Division of Models

    Model Needles Head        Display        Emb. Area                Machine Dimension
CBL-1204CH 12 4 12.1” LCD Touch Panel 400X450mm/16”X18” 2600X1340X1720mm/102”X53’X68”
CBL-1206CH 12 6 12.1” LCD Touch Panel 400X450mm/16”X18” 3400X1340X1720mm/134”X53”X68”
CBL-1208CH 12 8 12.1” LCD Touch Panel 400X450mm/16”X18” 4200X1340X1720mm/165”X53”X68”
CBL-1210CH 12 10 12.1” LCD Touch Panel 400X450mm/16”X18” 5000X1340X1720mm/197”X53”X68”
CBL-1212CH 12 12 12.1” LCD Touch Panel 400X450mm/16”X18” 6600X1340X1720mm/260”X53”X68”
CBL-1504CH 15 4 12.1” LCD Touch Panel 400X450mm/16”X18” 2600X1340X1720mm/102”X53’X68”
CBL-1506CH 15 6 12.1” LCD Touch Panel 400X450mm/16”X18” 3400X1340X1720mm/134”X53”X68”
CBL-1508CH 15 8 12.1” LCD Touch Panel 400X450mm/16”X18” 4200X1340X1720mm/165”X53”X68”
CBL-1510CH 15 10 12.1” LCD Touch Panel 400X450mm/16”X18” 5000X1340X1720mm/197”X53”X68”
CBL-1512CH 15 12 12.1” LCD Touch Panel 400X450mm/16”X18” 6600X1340X1720mm/260”X53”X68”
Notes:
  1. 500mm head interval model is available as required.
  2. 18 needle model is available as required.
  3. OEM&ODM orders are welcome.

Technical Parameters:

  • Latest BARUDAN design/Engineering
  • Servo motor for main axis movement
  • Servo motor for X and Y axis movements
  • Suitable for cap, flat, finished garment embroidery and more.
  • Thread breakage detection by wheels and springs, intelligent thread breakage detection (also
  • suitable for combination embroidery)
  • Stepping motor trimming
  • Active motor color-change
  • Jumping electromagnet for machine arm
  • Heavy duty linear guide rail for X and Y axis driving
  • Reinforced bridge body of Wuhan Steel
  • Rail type of frame guide rail
  • Heavy duty frame bearing
  • Thread break detection
  • Automatic and manual color change, automatic start
  • Setting the offset point, save pattern’s origin point
  • Data statistics and embroidery parameters
  • Positioning idling, high speed idling, low speed idling
  • Automatic trimming
  • Rotate, magnify, delete, copy, combine and divide patterns
  • Needle down operation;
  • Set frame protection at power off, set frame origin;
  • Return to the start point or stop point;
  • Dahao A68 12” HD True Color Touch Panel
  • Memory capacity: 200 million stitches or 500 designs
  • Maximum design stitches: 2,000,000 stitches
  • Intelligent and sensitive TB Detection: Type3-Magnetic encoder
  • Stepping motor color change
  • Frame Function: Servo Drive
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, French, Russian, Arabic and
  • other more. 14 languages.
  • Thread break detection
  • Automatic and manual color change, automatic start
  • Cyclic embroidery, edit pattern and pattern combination
  • Display memory design in sequence,preview design
  • Setting the offset point, save pattern’s origin point
  • Data statistics and embroidery parameters
  • Positioning idling, high speed idling, low speed idling
  • Automatic trimming
  • Rotate, magnify, delete, copy, combine and divide patterns
  • Patching embroidery, compensating of sating stitches,design from parameter;
  • Operation of patter periphery;
  • Needle down operation;
  • Set frame protection at power off, set frame origin;
  • Return to the start point or stop point;
  • Multi-languages available.

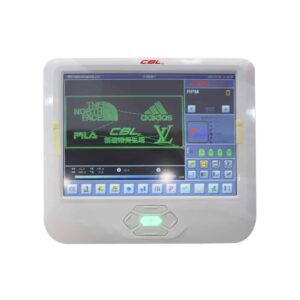

Control Panel Features:

  • Dahao A68 12.1” HD True Color Touch Panel
  • Memory capacity: 100 million stitches or 500 designs
  • Maximum design stitches: 2,000,000 stitches
  • Intelligent and sensitive TB Detection: Type3-Magnetic encoder
  • Stepping motor color change
  • Frame Function: Servo Drive
  • Lock-stitch looping available
  • Laser embroidery available
  • Beed embroidery available
  • Thermal cutting available
  • New Encryption available
  • Coilng embroidery available
  • Cording embroidery available
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish,  French, Russian, Arabic

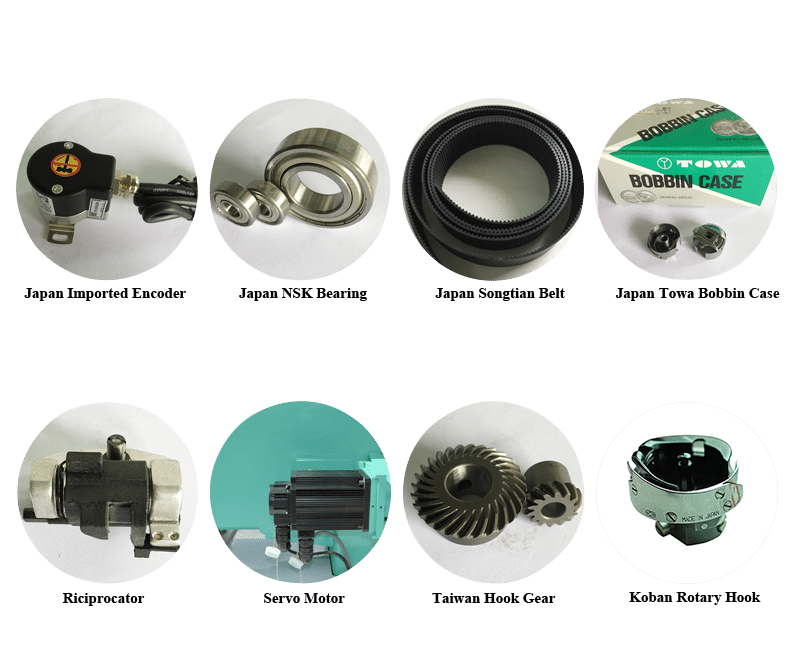

Machine Highlights:

  • Original Japanese Koban Rotary Hook
  • Original Japanese Bobbin case
  • Original Taiwan Hook gear
  • Machine body-Wuhan steel (The best in China)
  • Original Japanese motor belt
  • Original Japanese Reciprocator Slide block
  • Original Japanese Rotary hook shaft bushing
  • Take-up lever Driving lever AB-Ball design
  • Reinforced table stand to reduce vibration

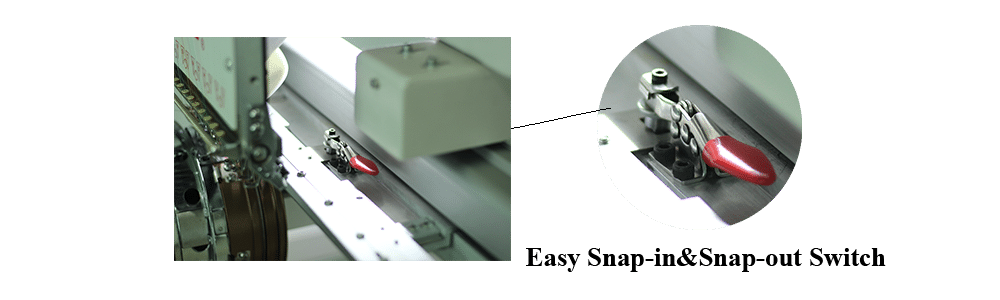

  • Easy and quick snap-in&snap-out design, saving hoop replacement time greatly

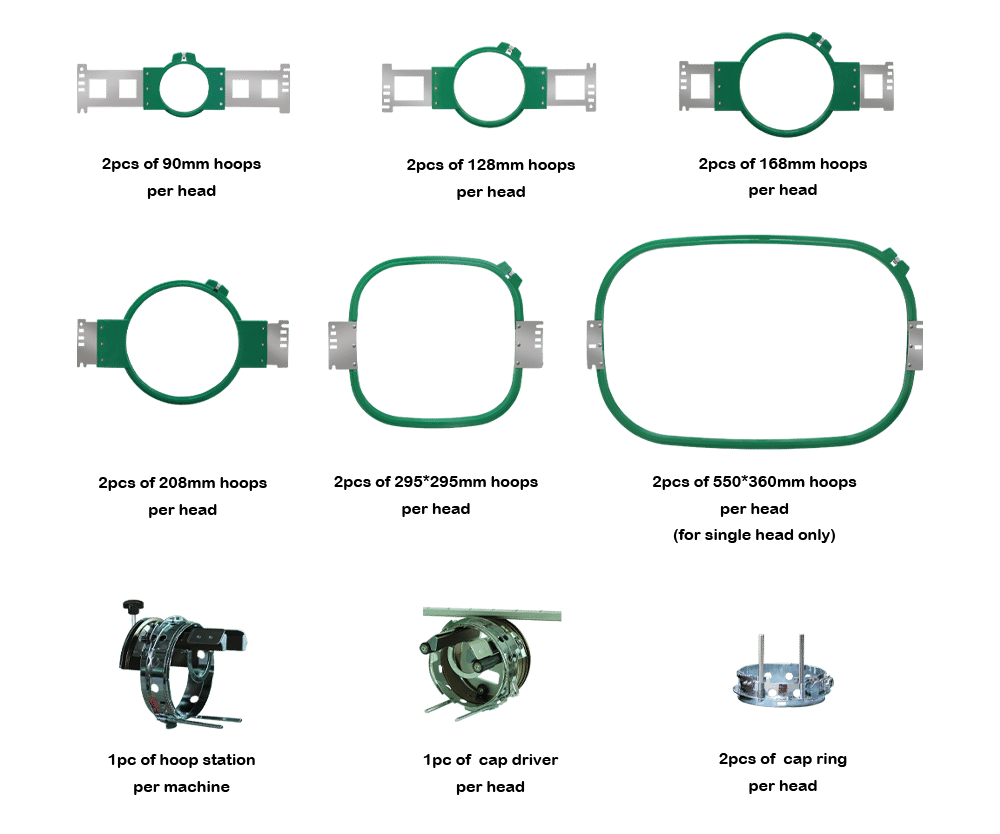

Hoops&Cap attachment Included

Optional Devices:

The downsized Slim Cylinder Bed has widened the application range so as to cover tubular products, such as sleeves, pockets, bags and other bulk items.

Machine Highlights

  • Main shaft motor-Servo motor
  • Closed-loop driving technology
  • Stepping motor color change
  • Stepping motor trimming
  • Stepping motor hooking
  • Stepping motor jumping
  • Patented Precise Color-change System
  • Upper-thread holding system
  • Innovative Smart Hooping System
  • Laser Position marker
  • Visual camera positioning system available
  • Signature/photo embroidery available
  • Infrared safety induction system available
  • A perfect integration of the best control system and the best mechanic system in China.

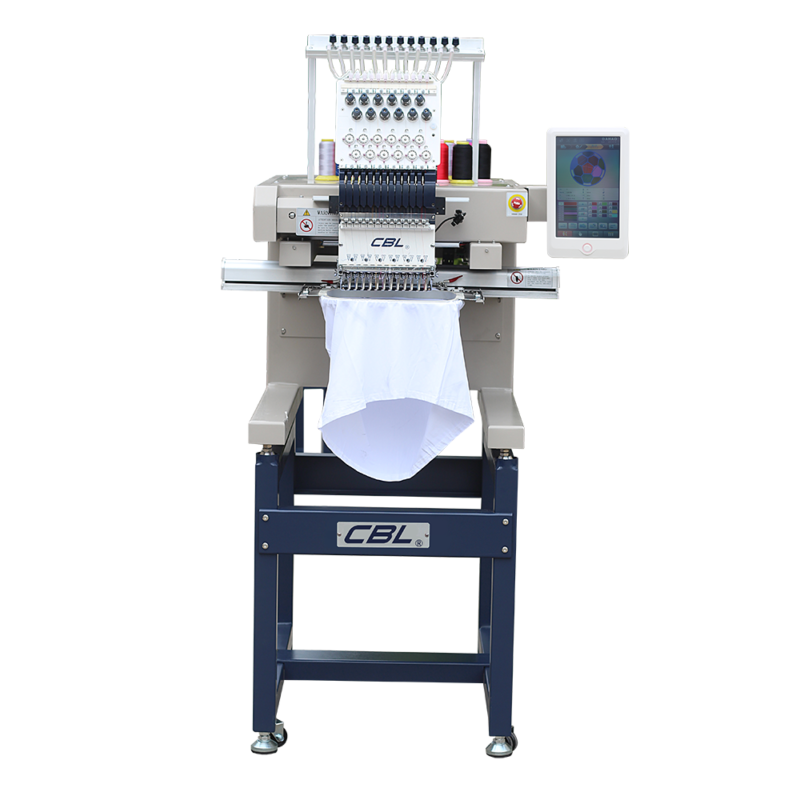

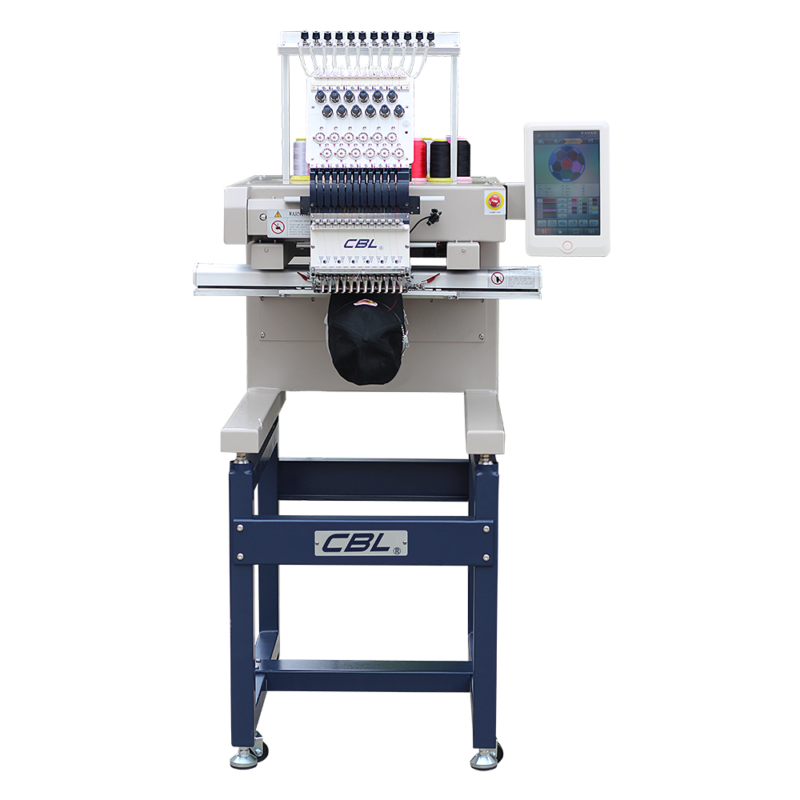

Division of Models

ModelNeedleHeadDisplayMax. SpeedEmb. AreaMachine SizeN.W
CBL-1201SC12110” HD LCD Touch Panel1200SPM500X400mm/20”X16”

900 x 800 x 1,600mm

35” x 32 x 63″

140Kgs/309Lbs
CBL-1501SC15110” HD LCD Touch Panel1200SPM500X400mm/20”X16”

900 x 800 x 1,600mm

35” x 32 x 63″

140Kgs/309Lbs
CBL-1801SC18110” HD LCD Touch Panel1200SPM500X400mm/20”X16”

900 x 800 x 1,600mm

35” x 32 x 63″

140Kgs/309Lbs

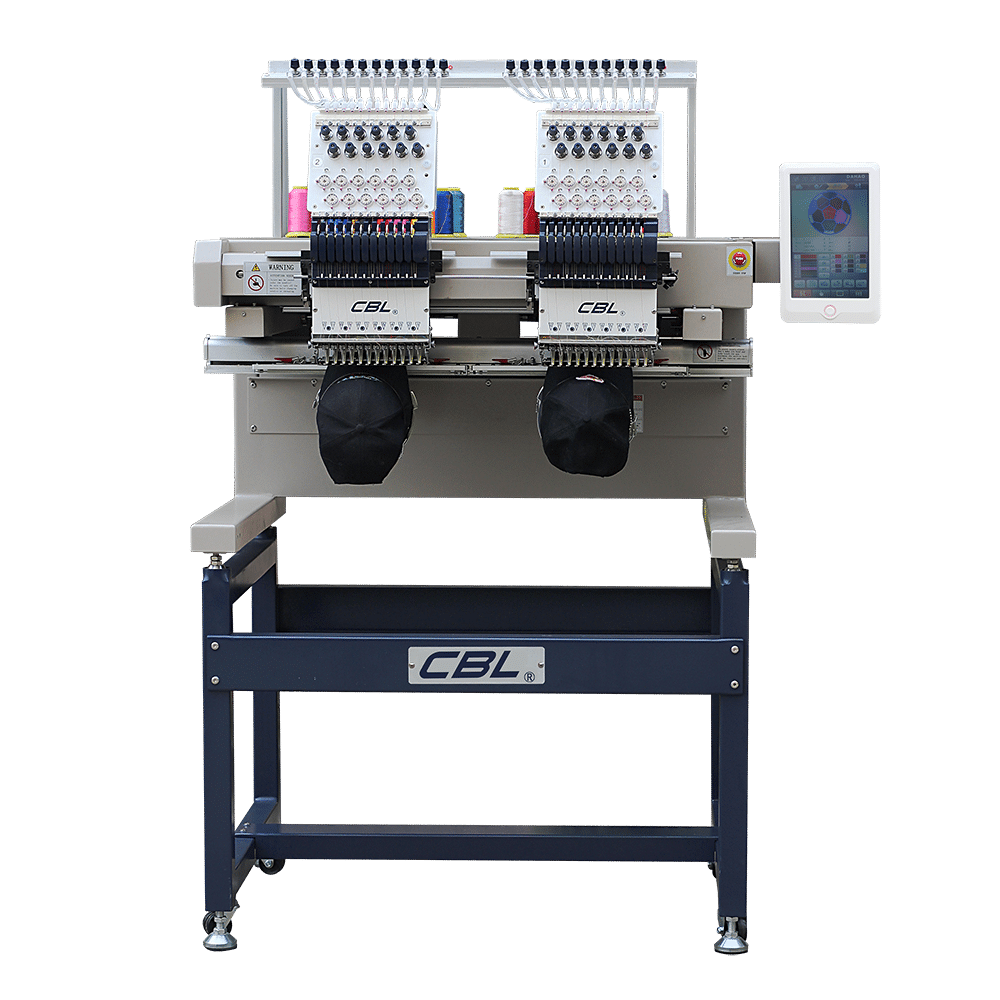

CBL-1202SC12210” HD LCD Touch Panel1200SPM400X400mm/16”X16”

1200 x 800 x 1,600mm

47” x 32 x 63″

180Kgs/397Lbs
CBL-1502SC15210” HD LCD Touch Panel1200SPM400X400mm/16”X16”

1200 x 800 x 1,600mm

47” x 32 x 63″

180Kgs/397Lbs
CBL-1802SC18210” HD LCD Touch Panel1200SPM400X400mm/16”X16”

1200 x 800 x 1,600mm

47” x 32 x 63″

180Kgs/397Lbs

*1200*400 large working area available as option

* OEM&ODM are welcome

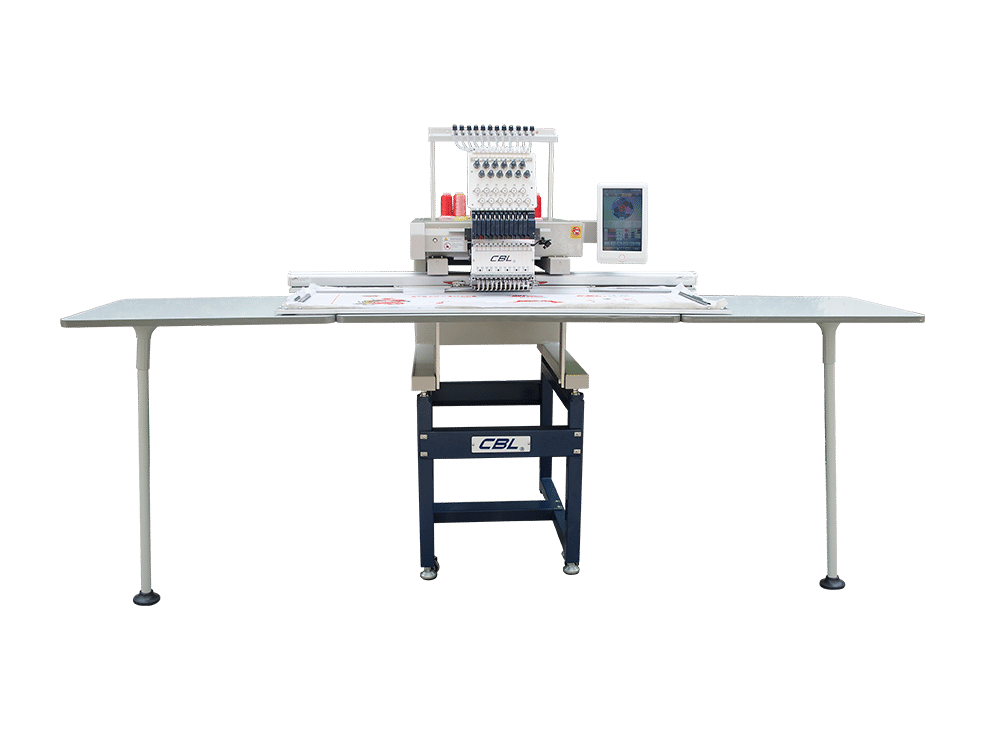

CBL extra wide table 1200*400 or EW4816 is applied to all SC single head model like 12/15/18 needle models.

The extended table is the perfect aide for embroidery on oversized items such as drapery, blankets,

banners, mattress borders, wedding dresses, quilt covers and much more.

Technical Parameters:

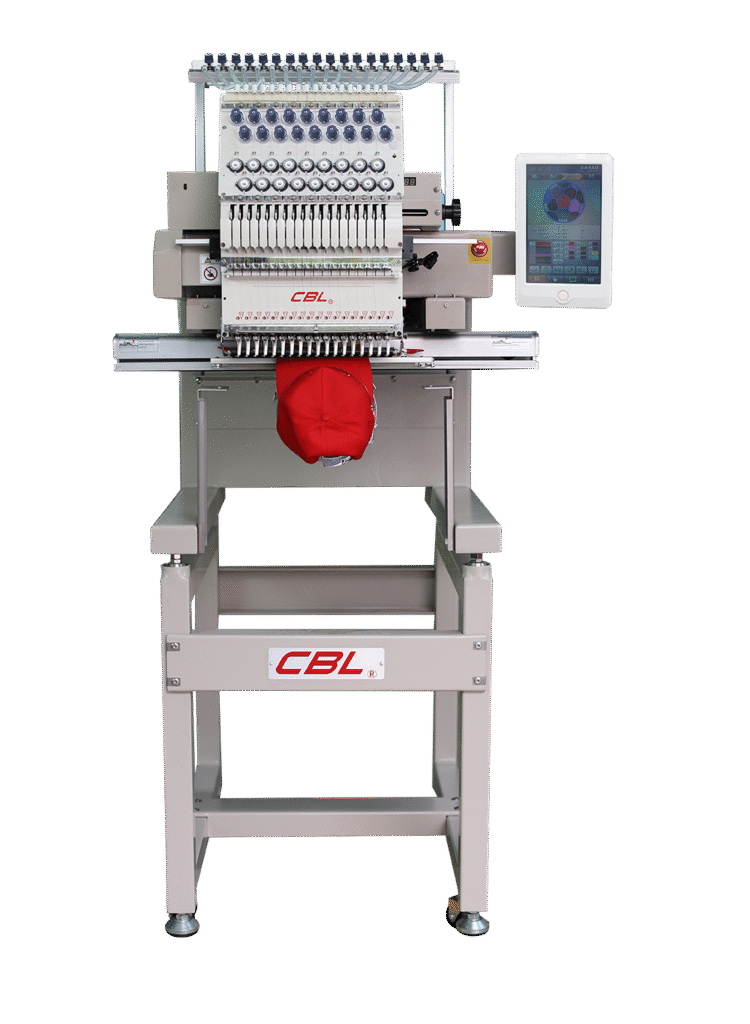

  • Suitable for cap, t-shirt and finished garment embroidery and more
  • Maximum embroidery area: 500 mm x 400 mm, or 20”x 16”
  • Maximum speed: 1,200 stitches per minute
  • Maximum cap speed:1200spm
  • Small and portable for easier desktop placement
  • Automatic color change
  • Intelligent thread break detection
  • The downsized Slim Cylinder Bed has widened the application range so as to cover tubular products, such as sleeves, pockets, bags and other bulk items.
  • Machine reads multiple design formats, such as DST, DSB, BARUDAN,ZSK formats and more
  • 270°wide angle cap system
  • Main shaft motor-Servo motor
  • Stepping closed-loop motor for X & Y axis driving to ensure low noise and less vibration
  • Stepping motor color change
  • Stepping motor trimming
  • Stepping motor hooking
  • Stepping motor Jumping
  • Multiple USB input or direct transmission from PC via LAN port or wireless
  • Networkable and Wi-Fi capable
  • Multi-angle rotational and adjustable control panel bracket for better viewing options
  • Emergency stop button
  • Automatic thread trimmer
  • Easily apply applique, sequin, boring or cording
  • Heavy duty steel stand with wheels to ensure stability and mobility
  • Reinforced aluminum thread stand to reduce vibration
  • New design for easy installation or dismantle
  • Laser trace device
  • Standard strong plywood package
  • Upper-thread holding system included
  • Visual camera positioning system available
  • Infrared safety induction system available

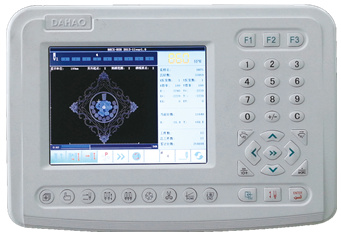

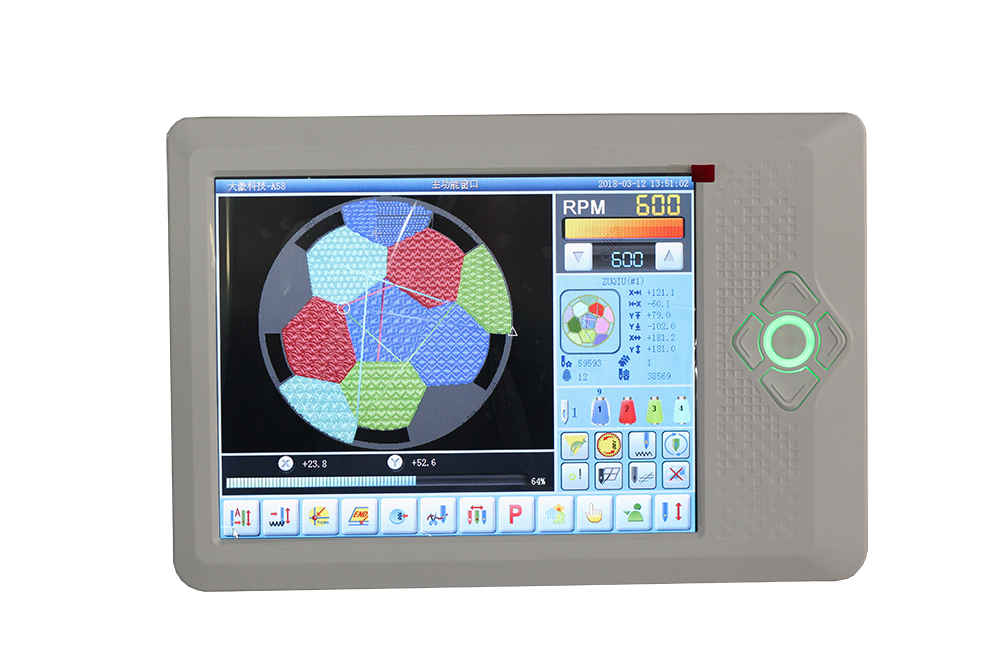

Control Panel Features:

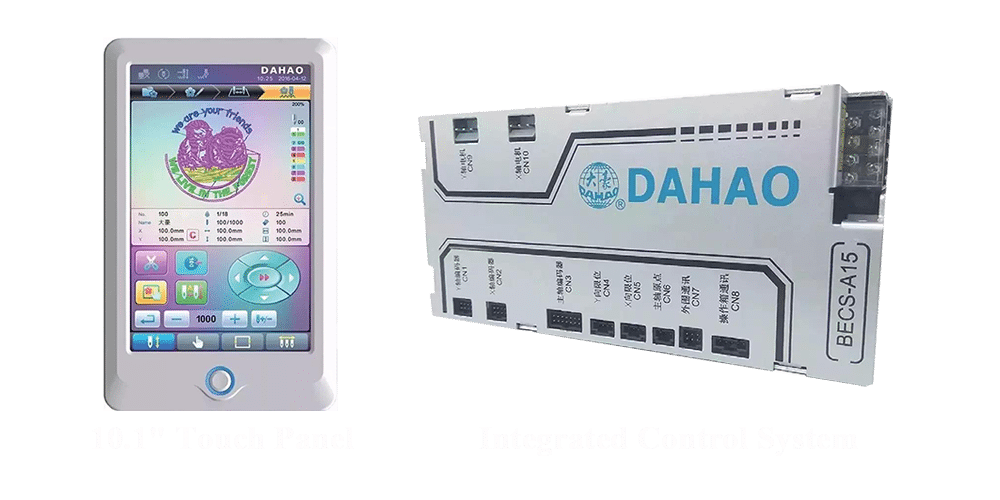

  • Dahao 10.1” HD True Color Touch Panel
  • Memory capacity: 200 million stitches or 500 designs
  • Intelligent and sensitive TB Detection: Wheel+spring
  • 85-265V Self-adaptable power supply
  • WIFI connection available
  • Multiple hoop sizes for a variety of embroidery needs
  • Compact size of Integrated control system
  • High-speed closed- loop stepping driving technology
  • Preset hoop parameters designed to avoid hitting hoops
  • Automatic memory retention
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, Germany, Russian, Italian, Thai, Arabic, Farsi

Machine Highlights:

  • Original Japanese Koban Rotary Hook
  • Original Japanese Bobbin case
  • Original Taiwan Hook gear
  • Machine body-Wuhan steel (The best in China)
  • Original Japanese motor belt
  • Original Japanese Reciprocator Slide block
  • Original Japanese Rotary hook shaft bushing
  • Take-up lever Driving lever AB-Ball design
  • Reinforced table stand to reduce vibration
  • Easy and quick snap-in&snap-out design, saving hoop replacement time greatly

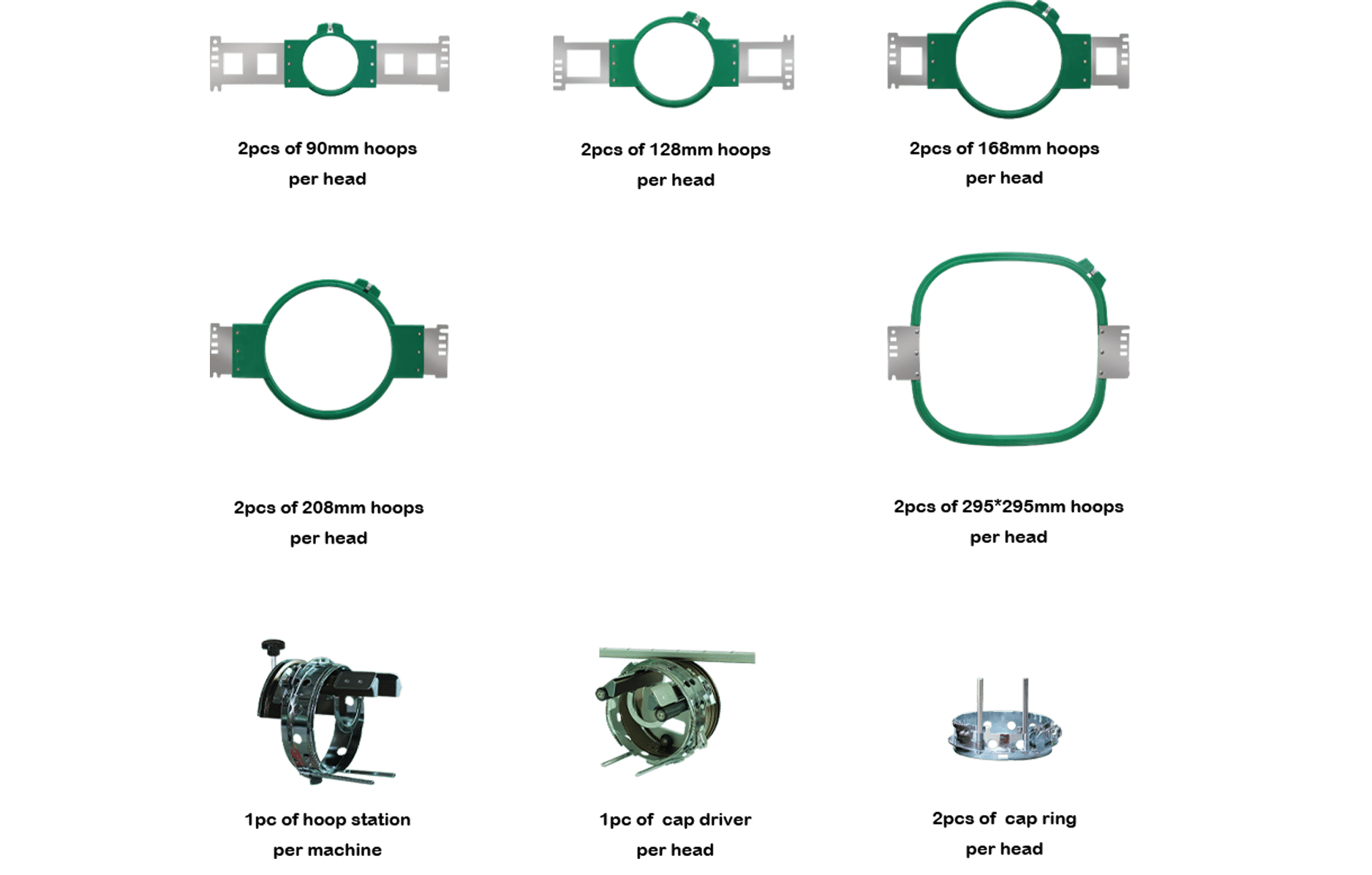

Hoops&Cap attachment Included

Optional Devices:

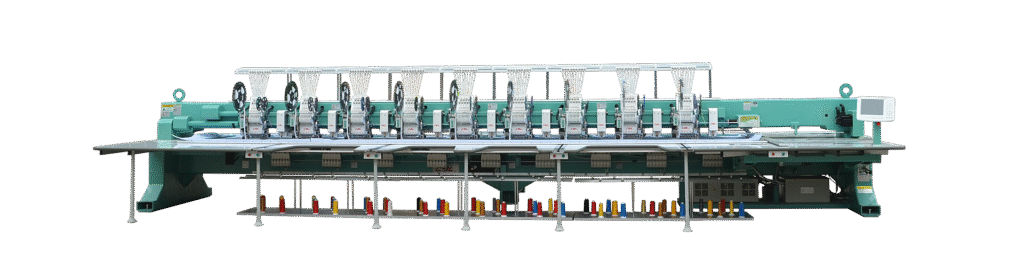

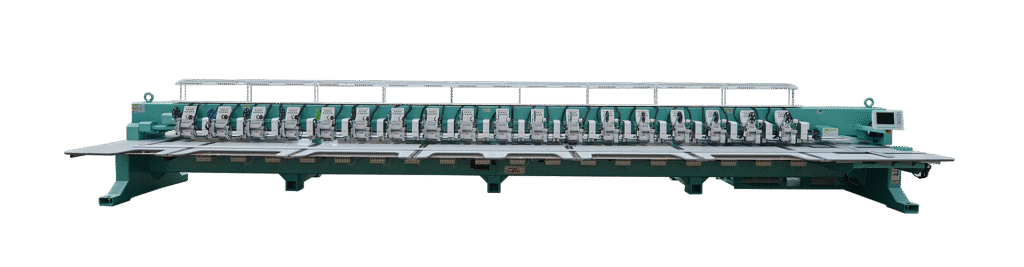

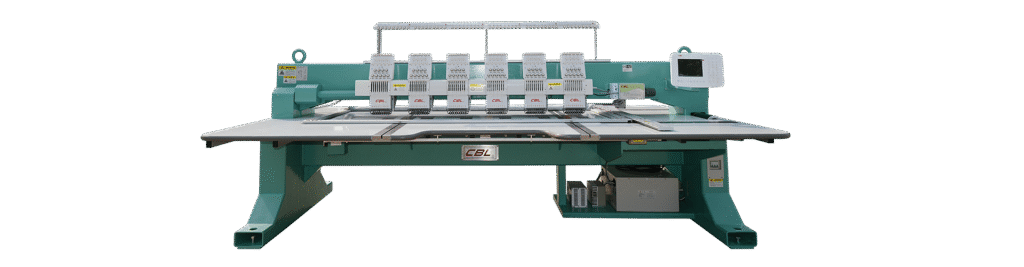

Available up to 88 heads, CBL high speed flatbed models are widely applied in knitting, tatting, cotton, leather, polyester,fiber, fabrics and other embroidery work.

Division of Models

Model Head Needle Head Interval（mm） Alternative Embroidery(mm) Embroidery Area(mm) Length Width Height
CBL-902FH 2 9 330 500 330X750 2120 1945 1640
CBL-904FH 4 9 330 500 330X750 2780 1945 1640
CBL-906FH 6 9 330 500 330X750 3340 1945 1640
CBL-908FH 8 9 330 500 330X750 4100 1945 1640
CBL-910FH 10 9 330 500 330X750 4760 1945 1640
CBL-912FH 12 9 330 500 330X750 5420 1945 1640
CBL-920FH 20 9 300 500 300X750 7680 1945 1640
CBL-460FH 60 4 165 500 165X800 11500 2055 1740
CBL-1520FH 20 15 450 600 450X800 10600 2045 1740
CBL-924FH 24 9 330 600 330X850 9520 2145 1740
CBL-930FH 30 9 350 600 350X850 12100 2145 1740
CBL-935FH 35 9 300 600 300X850 12100 2145 1740
CBL-1230FH 30 12 330/350 900 330/350*900 11500/12100 2245 1740
CBL-924FH 24 9 400 600 400X850 11200 2145 1740
CBL-1224FH 24 12 400 600 400X850 11900 2145 1740
CBL-1226FH 26 12 350 600 350X850 10600 2145 1740
CBL-1230FH 30 12 330 600 330X850 11500 2145 1740
Special Notes:
  1. CBL also produces flatbed machines as per customers ’requests.
  2. Head interval or embroidery area can be specially designed as required.
  3. OEM/OEM orders are welcome.

Technical Parameters:

  • Color change method- Screw-rod color change
  • Stepping motor color change
  • Original Japan Koban hook-12RYPICC
  • Original Japan Towa bobbin case
  • Upper/lower shaft bearing: Taiwan SHL bearing
  • High speed arm
  • Intelligent TB system
  • Stepping motor jumping
  • Stepping motor trimming
  • Reinforced aluminum table support
  • Main motor-servo motor
  • Upper-thread holding system
  • XY motor- Dahao servo motor
  • Bridge body-Wuhan Steel ( The best in China)
  • Reinforced high speed linear guide rail
  • Silencer device- single cam double connection rod
  • Original Japan high speed reciprocator
  • Tension disk-Barudan lockstitch type
  • Take-up lever AB- Rolling ball design
  • Rotary hook bushing-self-lubrication bearing design
  • High quality main shaft belt

Control Panel Features:

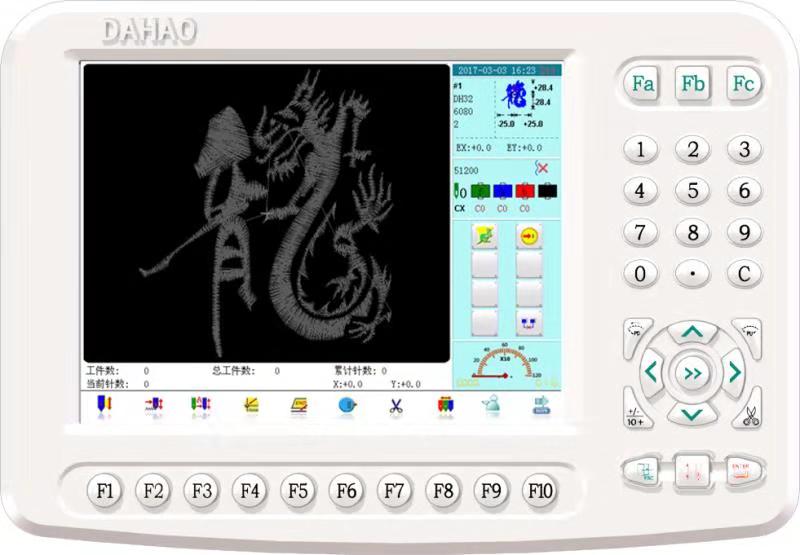

  • Dahao A58 10” HD True Color Touch Panel
  • Memory capacity: 100 million stitches or 500 designs
  • Maximum design stitches: 2,000,000 stitches
  • Intelligent and sensitive TB Detection: Type3-Magnetic encoder
  • Stepping motor color change
  • Frame Function: Servo Drive

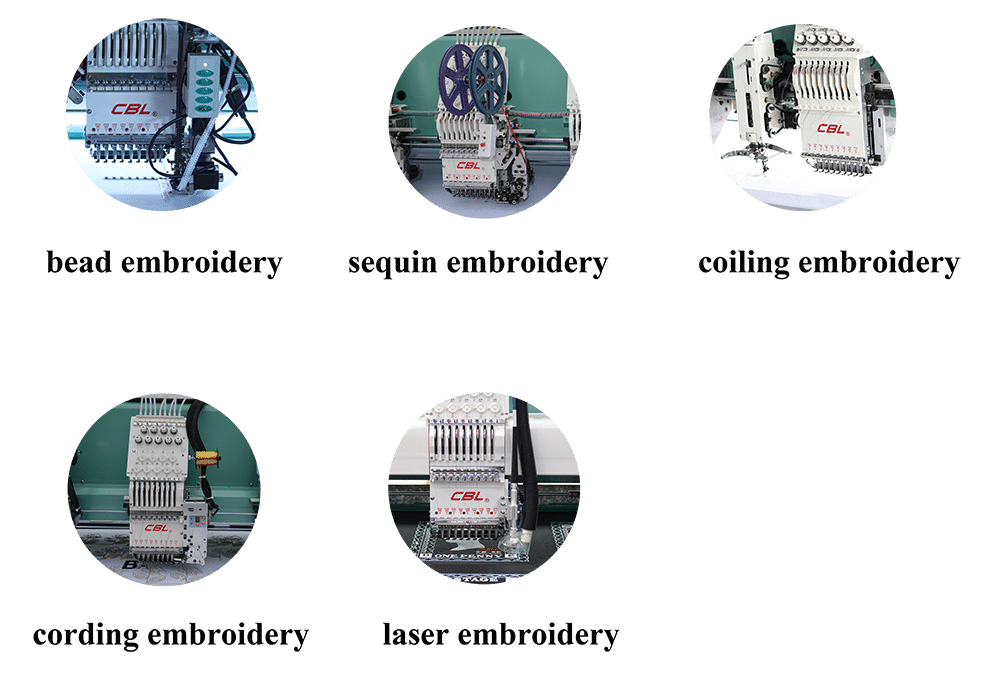

  • Lock-stitch looping available

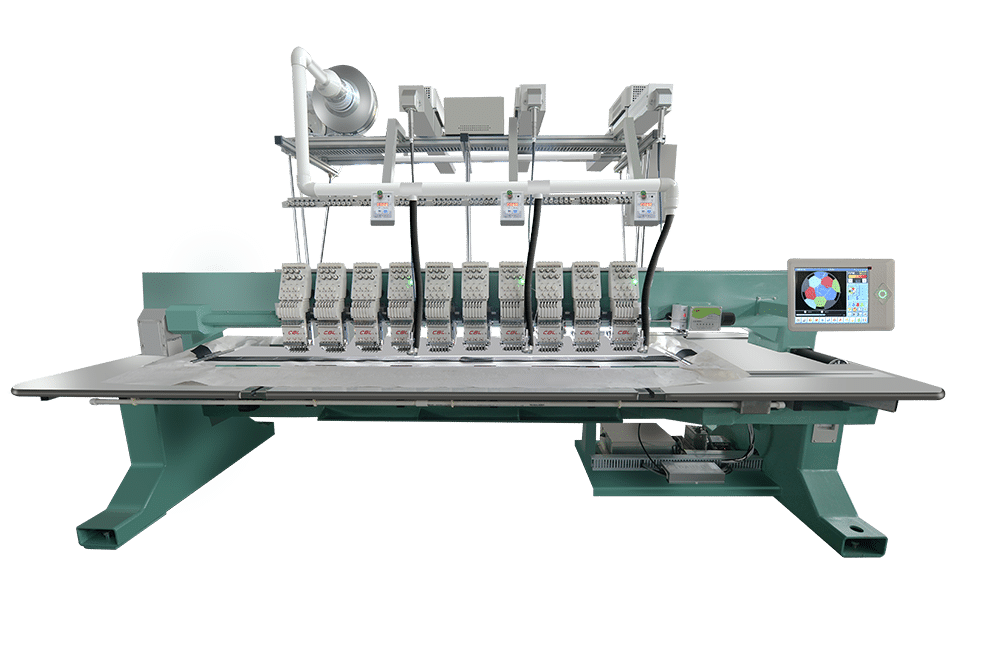

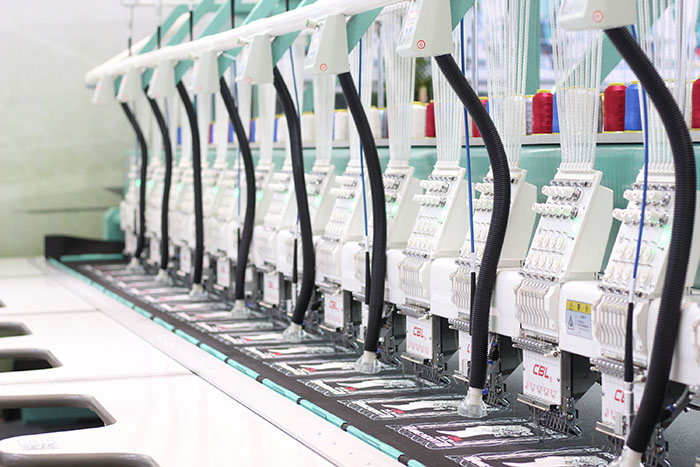

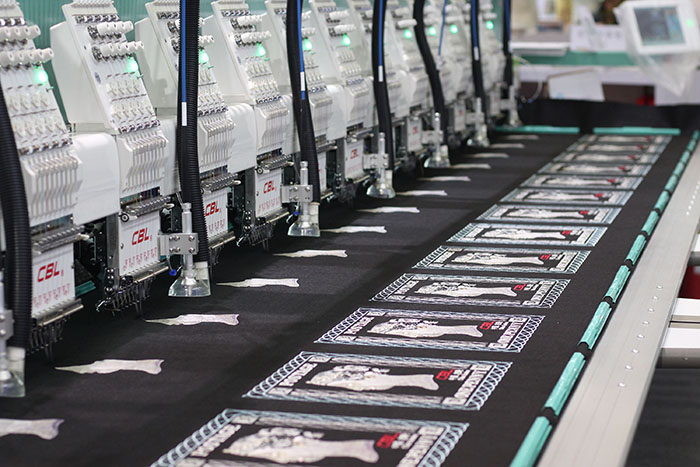

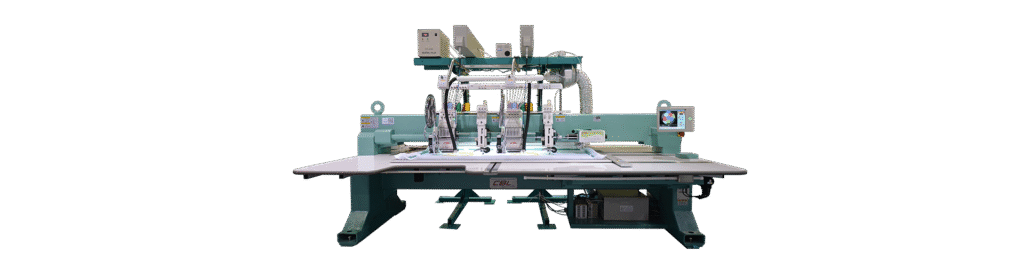

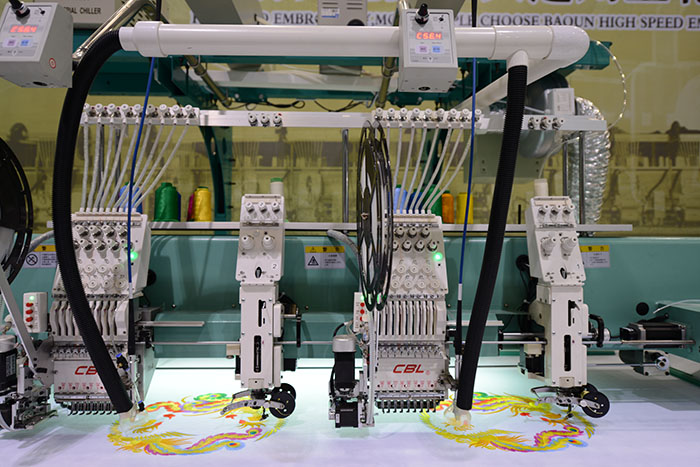

  • Laser embroidery available
  • Beed embroidery available
  • Thermal cutting available
  • New Encryption available

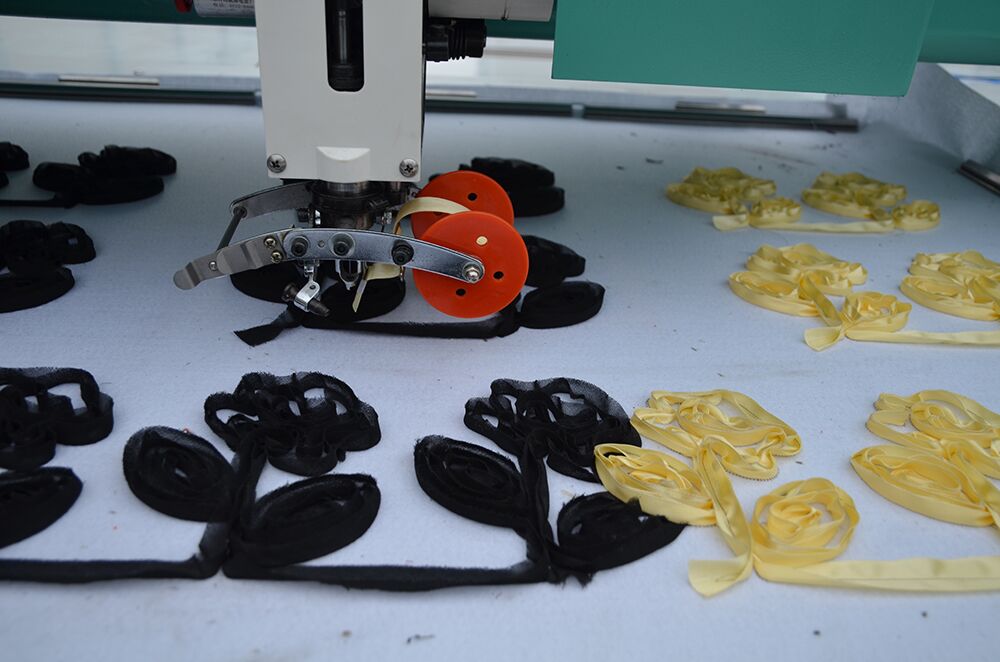

  • Coilng embroidery available
  • Cording embroidery available
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish,  French, Russian, Arabic

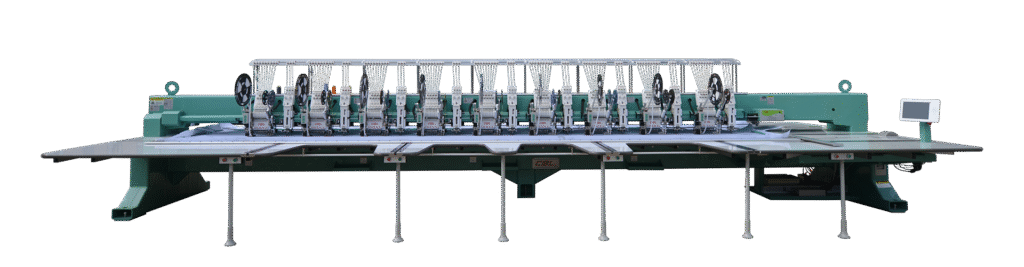

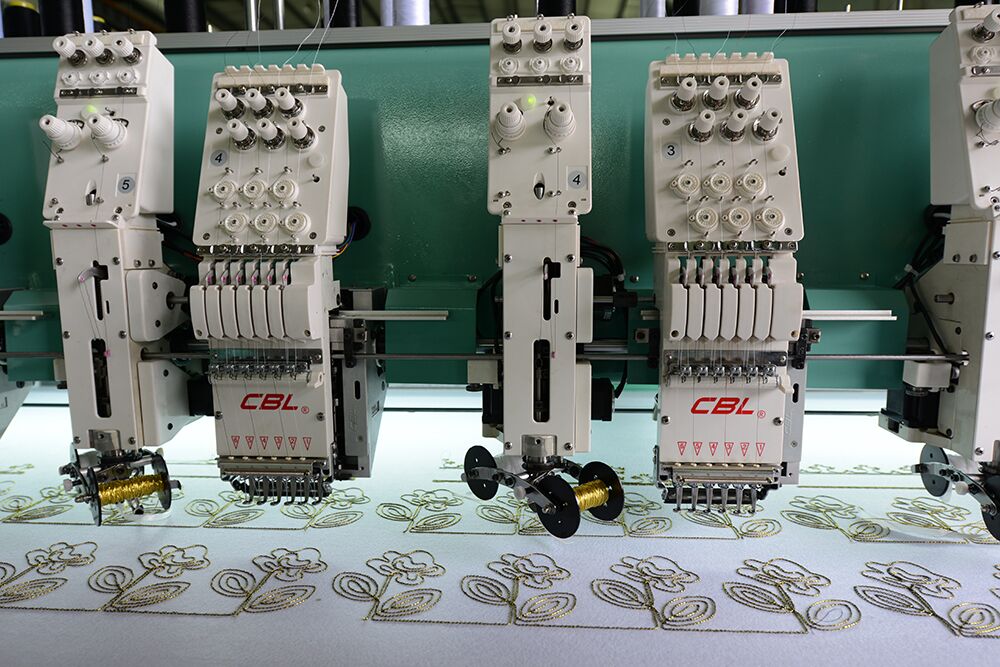

Available in up to 88 heads, CBL quality flatbed embroidery machines are widely applied in knitting, tatting, cotton, leather, polyester,fiber, fabrics and other embroidery work.

Technical Parameters:

  • Color change method- Screw-rod color change
  • Stepping motor color change
  • Original Japan Koban hook-12RYPICC
  • Original Japan Towa bobbin case
  • Upper/lower shaft bearing: Taiwan SHL bearing
  • High speed arm
  • Intelligent TB system
  • Stepping motor jumping
  • Stepping motor trimming
  • Reinforced aluminum table support
  • Main motor-servo motor
  • Upper-thread holding system
  • Servo motor for main axis movement
  • Servo motor for X and Y axis movements
  • Thread breakage detection by wheels and springs,intelligent thread breakage detection (also suitable for combination embroidery)
  • Stepping motor trimming
  • Active motor color-change
  • Jumping electromagnet for machine arm
  • stepping motor jumping
  • Heavy duty linear guide rail for X and Y axis driving
  • Reinforced bridge body of Wuhan Steel
  • Rail type of frame guide rail
  • Heavy duty frame bearing
  • Non-contact inductive lever switch

Control Panel Features:

  • Dahao 528- 8″ TFT LCD panel
  • Memory capacity: 100 million stitches or 800 designs
  • Intelligent and sensitive TB Detection: Type3-Magnetic encoder
  • Stepping motor color change
  • Frame Function: Servo Drive
  • Lock-stitch looping available

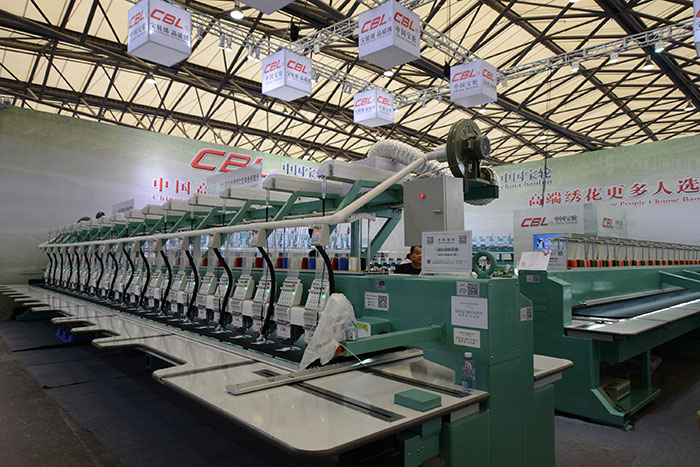

  • Laser embroidery available
  • Beed embroidery available
  • Thermal cutting available
  • New Encryption available
  • Coilng embroidery available
  • Cording embroidery available
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish,  French, Russian, Arabic,Persian



CBL offers a full range of high quality coiling embroidery machines to meet different types of special requests.

Technical Parameters:

  • Tension Base：Inteligent thread break detect
  • Flat Embroidery Main Shaft Motor：2KW servo motor x 1 pc
  • Upper thread holding devie：locked thread device(For option)
  • Coiling Embroidery ZAxis：1,5KW servo motor x1 pcs
  • Control System：Dahao 8’’LCD screen computer
  • Coiling Embroidery Speed：250-850 rpm
  • X、Y axis motor：Servo motor x2 pcs
  • Design input :By U Disk or Lan or WIFI connection
  • X、Y driving：Rainforced high speed liner guide rail
  • Design format ：Compatible with designs of T ajima(DST)，DSB，DARUDA,ZSK,binary system,temary system
  • Input voltage ：Three phase 380v(50/60HZ),Single phase 220v(50/60HZ)
  • Stitch Length：0．1mm-12.7mm
  • Power comsumption：1.5KW-5KW
  • Coiling Device   ：Focus doble material Coiling rope embroidery device

Control Panel Features:

  • Dahao A58 10” HD True Color Touch Panel
  • Memory capacity: 100 million stitches or 500 designs
  • Maximum design stitches: 2,000,000 stitches
  • Intelligent and sensitive TB Detection: Type3-Magnetic encoder
  • Stepping motor color change
  • Frame Function: Servo Drive
  • Lock-stitch looping available
  • Laser embroidery available
  • Beed embroidery available
  • Thermal cutting available
  • New Encryption available
  • Coilng embroidery available
  • Cording embroidery available
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish,  French, Russian, Arabic

Division of Models:

Model Flat Head Flat  needle Coiling needle Embroidery area( mm) Length Width Height
CBL-10606CL 6 6 1 500*850 4890 2140 1640
CBL-10608CL 8 6 1 500*850 5890 2140 1640
CBL-10610CL 10 6 1 500*850 6890 2140 1640
CBL-10612CL 12 6 1 500*850 7890 2140 1640
CBL-10920CL 20 9 1 500*850 1200 2140 1620
CBL-10915CL 15 9 1 500*850 8750 2140 1640
CBL-10918CL 18 6 1 450*800 10300 2035 1640
CBL-10620CL 20 6 1 450*800 11000 2035 1640
Remarks:
  1. We can produce models as per customers’ requests.
  2. OEM&ODM are welcome.
CBL offers a full range of coiling embroidery machines to meet different types of special requests. Mixed flatbed machines can greatly enhance production.

Technical Parameters:

  • Tension Base：Inteligent thread break detect
  • Flat Embroidery Main Shaft Motor：2KW servo motor x 1 pc
  • Upper thread holding devie：locked thread device(For option)
  • Coiling Embroidery ZAxis：1,5KW servo motor x1 pcs
  • Control System：Dahao 8’’LCD screen computer
  • Coiling Embroidery Speed：250-850 rpm
  • X、Y axis motor：Servo motor x2 pcs
  • Design input :By U Disk or Lan or WIFI connection
  • X、Y driving：Rainforced high speed liner guide rail
  • Design format ：Compatible with designs of T ajima(DST)，DSB，DARUDA,ZSK,binary system,temary system
  • Input voltage ：Three phase 380v(50/60HZ),Single phase 220v(50/60HZ)
  • Stitch Length：0．1mm-12.7mm
  • Power comsumption：1.5KW-5KW
  • Coiling Device   ：Focus doble material Coiling rope embroidery device

Control Panel Features:

  • Dahao A58 10” HD True Color Touch Panel
  • Memory capacity: 100 million stitches or 500 designs
  • Maximum design stitches: 2,000,000 stitches
  • Intelligent and sensitive TB Detection: Type3-Magnetic encoder
  • Stepping motor color change
  • Frame Function: Servo Drive
  • Lock-stitch looping available
  • Laser embroidery available
  • Beed embroidery available
  • Thermal cutting available
  • New Encryption available
  • Coilng embroidery available
  • Cording embroidery available
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish,  French, Russian, Arabic

Division of Models:

Model Flat Head Flat  needle Coiling needle Embroidery area( mm) Length Width Height
MFCL-10606H 6 6 1 500*850 4890 2140 1640
MFCL-10608H 8 6 1 500*850 5890 2140 1640
MFCL-10610H 10 6 1 500*850 6890 2140 1640
MFCL-10612H 12 6 1 500*850 7890 2140 1640
MFCL-10920H 20 9 1 500*850 1200 2140 1620
MFCL-10915H 15 9 1 500*850 8750 2140 1640
MFCL-10918H 18 6 1 450*800 10300 2035 1640
MFCL-10620H 20 6 1 450*800 11000 2035 1640
Remarks:
  1. We can produce models as per customers’ requests.
  2. OEM&ODM are welcome.
Available in up to 24 heads, you can scale your chenille embroidery and traditional embroidery production with this 2-in-1 multi-head machine.

Technical Parameters:

  • •Servo motor for main axis movement
    •Servo motors for X and Y axis movements
    •Intelligent thread break detection system
    •Upper-thread holding system
    • Automatic trimming
    • AC motor for color change
    • Motor-controlled jump stitch
    • Integrated AC motor hooking system
    • Servo motor for D shaft
    • Servo motor for H shaft
    • Stepping motor trimming for chenille embroidery
    • Heavy duty linear guide rail for X and Y axis driving
    • Reinforced frame materials
    • Rail type of frame guide rail
    • Heavy duty frame bearing

    • No-contact inductive lever switch
    • Thread break detection
    • Automatic or manual color change, automatic start
    • Cyclic embroidery, design editing and design combination
    • Memory design display and preview
    • Setting the offset point and save design origin point
    • Forward and rewind designs at high and low speeds
    • Rotate, resize, edit and multiply designs
    • Edit design density and compensation directly on screen
    • Design tracing helps ensure your needle does not hit the hoop
    • Preset hoops set hoop boundaries for perfect centering
    • Return to the start point or end point
    • Multiple languages available
    • Can chenille embroidery, monogram, mixed chenille and flat embroidery

Control Panel Features:

  • D19 is the upgraded version of C19 and its functions, operation mode and display interface are compatible with those of C19. D19 has extended many practical functions and upgraded configurations:
  • New control system platform based on “Dahao Core” DH910 to comprehensively improve the control performance;
  • New button operation mode with three more self-defined function buttons to have made operation more convenient;
  • Color-changing times up to 1000 times;
  • An increased memory capacity of 200 million stitches or 800 designs
  • Support maximum stitch number for single pattern of 2 million stitches;
  • Support intelligent encryption mode for payment installment
  • Main board and control box to be connected by HDMI interface cable instead of flat cable for more convenient connection;
  • Optimized looping embroidery control algorithm and high-speed looping drive technology to realize super high-speed rotation at 1200rpm;
  • Support flat & looping embroidery double main shaft drive function;
  • Support 2H/3H axis drive function;
  • Support looping stepping closed loop color-changing function;
  • Support flat & looping embroidery double color-changing function
  • Support custom-made and special needle height potentiometer DW320 for looping embroidery;
  • Support looping & flat embroidery combination function;

Division of Models:

Model Flat Chenille Head interval Max speed for flat Max speed for chenille EMB area (mm) Machine dimension (mm)
Needles Heads Needles Heads mm SPM SPM X Y A B C D E
Length max width height to table length
MFC-60906H 9 6 6 6 450 1000 850 450 750 4390 1955 1650 1380 1130
MFC-60912H 9 12 6 12 450 1000 850 450 750 7090 1955 1650 1380 1130
MFC-60915H 9 15 6 15 450 1000 850 450 800 8700 1955 1650 1380 1130
MFC-60918H 9 18 6 18 450 1000 850 450 750 10500 1955 1650 1380 1130
MFC-60920H 9 20 6 20 450 1000 850 450 800 11500 2035 1650 1380 1130
Remarks:
  1. Head interval, embroidery area and needles can be specially made as per customers’ requests.
  2. FHT-stands for high speed flatbed& chenille model
  3. OEM&ODM orders are welcome
Available up to 30 heads, you can scale your chenille embroidery and traditional embroidery production with the 2-in-1 mixed chenille embroidery machines.

Technical Parameters:

•Servo motor for main axis movement
•Servo motors for X and Y axis movements
•Intelligent thread break detection system
•Upper-thread holding system
• Automatic trimming
• AC motor for color change
• Motor-controlled jump stitch
• Integrated AC motor hooking system
• Servo motor for D shaft
• Servo motor for H shaft
• Stepping motor trimming for chenille embroidery
• Heavy duty linear guide rail for X and Y axis driving
• Reinforced frame materials
• Rail type of frame guide rail
• Heavy duty frame bearing



• No-contact inductive lever switch
• Thread break detection
• Automatic or manual color change, automatic start
• Cyclic embroidery, design editing and design combination
• Memory design display and preview
• Setting the offset point and save design origin point
• Forward and rewind designs at high and low speeds
• Rotate, resize, edit and multiply designs
• Edit design density and compensation directly on screen
• Design tracing helps ensure your needle does not hit the hoop
• Preset hoops set hoop boundaries for perfect centering
• Return to the start point or end point
• Multiple languages available
• Can chenille embroidery, monogram, mixed chenille and flat embroidery

Control Panel Features:

  • D19 is the upgraded version of C19 and its functions, operation mode and display interface are compatible with those of C19. D19 has extended many practical functions and upgraded configurations:
  • New control system platform based on “Dahao Core” DH910 to comprehensively improve the control performance;
  • New button operation mode with three more self-defined function buttons to have made operation more convenient;
  • Color-changing times up to 1000 times;
  • An increased memory capacity of 200 million stitches or 800 designs
  • Support maximum stitch number for single pattern of 2 million stitches;
  • Support intelligent encryption mode for payment installment
  • Main board and control box to be connected by HDMI interface cable instead of flat cable for more convenient connection;
  • Optimized looping embroidery control algorithm and high-speed looping drive technology to realize super high-speed rotation at 1200rpm;
  • Support flat & looping embroidery double main shaft drive function;
  • Support 2H/3H axis drive function;
  • Support looping stepping closed loop color-changing function;
  • Support flat & looping embroidery double color-changing function
  • Support custom-made and special needle height potentiometer DW320 for looping embroidery;
  • Support looping & flat embroidery combination function;

Division of Models:

Model Flat Chenille Head interval Max speed for flat Max speed for chenille EMB area (mm) Machine dimension (mm)
Needles Heads Needles Heads mm SPM SPM X Y A B C D E
Length max width height to table length
MFC-60906H 9 6 6 6 450 1000 850 450 750 4390 1955 1650 1380 1130
MFC-60912H 9 12 6 12 450 1000 850 450 750 7090 1955 1650 1380 1130
MFC-60915H 9 15 6 15 450 1000 850 450 800 8700 1955 1650 1380 1130
MFC-60918H 9 18 6 18 450 1000 850 450 750 10500 1955 1650 1380 1130
MFC-60920H 9 20 6 20 450 1000 850 450 800 11500 2035 1650 1380 1130
Remarks:
  1. Head interval, embroidery area and needles can be specially made as per customers’ requests.
  2. FHT-stands for high speed flatbed& chenille model
  3. OEM&ODM orders are welcome
Available in up to 24 heads, you can scale your chenille embroidery and traditional embroidery production with this 3-in-1 multi-head machine.

Technical Parameters:

•Servo motor for main axis movement
•Servo motors for X and Y axis movements
•Intelligent thread break detection system
•Upper-thread holding system
• Automatic trimming
• AC motor for color change
• Motor-controlled jump stitch
• Integrated AC motor hooking system
• Servo motor for D shaft
• Servo motor for H shaft
• Stepping motor trimming for chenille embroidery
• Heavy duty linear guide rail for X and Y axis driving
• Reinforced frame materials
• Rail type of frame guide rail
• Heavy duty frame bearing

• No-contact inductive lever switch
• Thread break detection
• Automatic or manual color change, automatic start
• Cyclic embroidery, design editing and design combination
• Memory design display and preview
• Setting the offset point and save design origin point
• Forward and rewind designs at high and low speeds
• Rotate, resize, edit and multiply designs
• Edit design density and compensation directly on screen
• Design tracing helps ensure your needle does not hit the hoop
• Preset hoops set hoop boundaries for perfect centering
• Return to the start point or end point
• Multiple languages available
• Can chenille embroidery, monogram, mixed chenille and flat embroidery

Control Panel Features:

  • D19 is the upgraded version of C19 and its functions, operation mode and display interface are compatible with those of C19. D19 has extended many practical functions and upgraded configurations:
  • New control system platform based on “Dahao Core” DH910 to comprehensively improve the control performance;
  • New button operation mode with three more self-defined function buttons to have made operation more convenient;
  • Color-changing times up to 1000 times;
  • An increased memory capacity of 200 million stitches or 800 designs
  • Support maximum stitch number for single pattern of 2 million stitches;
  • Support intelligent encryption mode for payment installment
  • Main board and control box to be connected by HDMI interface cable instead of flat cable for more convenient connection;
  • Optimized looping embroidery control algorithm and high-speed looping drive technology to realize super high-speed rotation at 1200rpm;
  • Support flat & looping embroidery double main shaft drive function;
  • Support 2H/3H axis drive function;
  • Support looping stepping closed loop color-changing function;
  • Support flat & looping embroidery double color-changing function
  • Support custom-made and special needle height potentiometer DW320 for looping embroidery;
  • Support looping & flat embroidery combination function;



Division of Models:

Model Flat Chenille Head interval Max speed for flat Max speed for chenille EMB area (mm) Machine dimension (mm)
Needles Heads Needles Heads mm SPM SPM X Y A B C D E
Length max width height to table length
MFC-60906H 9 6 6 6 450 1000 850 450 750 4390 1955 1650 1380 1130
MFC-60912H 9 12 6 12 450 1000 850 450 750 7090 1955 1650 1380 1130
MFC-60915H 9 15 6 15 450 1000 850 450 800 8700 1955 1650 1380 1130
MFC-60918H 9 18 6 18 450 1000 850 450 750 10500 1955 1650 1380 1130
MFC-60920H 9 20 6 20 450 1000 850 450 800 11500 2035 1650 1380 1130
Remarks:
  1. Head interval, embroidery area and needles can be specially made as per customers’ requests.
  2. FHT-stands for high speed flatbed& chenille model
  3. OEM&ODM orders are welcome
CBL high quality embroidery machines can be fitted with super laser cutting systems. The one-stop solution greatly increases production efficiency and are getting more and more popular with our customers.

Technical Parameters:

  • Thread break detection
  • Automatic and manual color change, automatic start
  • Cyclic embroidery, edit pattern and pattern combination
  • Display memory design in sequence,preview design
  • Setting the offset point, save pattern’s origin point
  • Data statistics and embroidery parameters
  • Positioning idling, high speed idling, low speed idling
  • Automatic trimming
  • Rotate, magnify, delete, copy, combine and divide patterns
  • Patching embroidery, compensating of sating stitches,design from parameter;
  • Operation of patter periphery;
  • Needle down operation;
  • Set frame protection at power off, set frame origin;
  • Return to the start point or stop point;
  • Multi-languages available.
  • Servo motor for main axis movement
  • Servo motor for X and Y axis movements
  • Upper-threading holding system
  • Thread breakage detection by wheels and springs,intelligent thread breakage detection (also suitable for combination embroidery)
  • Stepping motor trimming
  • Active motor color-change
  • Jumping electromagnet for machine arm
  • stepping motor jumping
  • Heavy duty linear guide rail for X and Y axis driving
  • Reinforced bridge body of Wuhan Steel
  • Rail type of frame guide rail
  • Heavy duty frame bearing
  • Non-contact inductive lever switch
Mini mixed chenille embroidery machine MFC-60901

Product specifications:

  • Model: MFC-60901
  • Number of chenille needle:6
  • Number of flatbed needle: 9
  • Number of head:1
  • Maximum flat speed:1000SPM
  • Maximum chenille speed:750 SPM
  • Embroidery area: 500mm X 400mm
  • Machine package  dimension: 140mmX890mmX1050mm
  • Gross weight: 280 Kgs
  • Net weight: 220 Kgs

Technical Parameters:

  • Servo motor for main axis movement
    •Stepping motors for X and Y axis movements
    •Intelligent thread break detection system
    •Upper-thread holding system
    • Automatic trimming
    • AC motor for color change
    • Integrated AC motor hooking system
    • Stepping motor trimming for chenille embroidery
  • Thread break detection
  • • Automatic or manual color change, automatic start
    • Cyclic embroidery, design editing and design combination
    • Memory design display and preview
    • Setting the offset point and save design origin point
    • Forward and rewind designs at high and low speeds
    • Rotate, resize, edit and multiply designs
    • Edit design density and compensation directly on screen
    • Design tracing helps ensure your needle does not hit the hoop
    • Preset hoops set hoop boundaries for perfect centering
    • Return to the start point or end point
  • Multiple languages available
    • Chenille embroidery, monogram, mixed chenille and flat embroidery

Display Features:

  • D19 is the upgraded version of C19 and its functions, operation mode and display interface are compatible with those of C19. D19 has extended many practical functions and upgraded configurations:
  • New control system platform based on “Dahao Core” DH910 to comprehensively improve the control performance;
  • New button operation mode with three more self-defined function buttons to have made operation more convenient;
  • Color-changing times up to 1000 times;
  • An increased memory capacity of 200 million stitches or 800 designs
  • Support maximum stitch number for single pattern of 2 million stitches;
  • Support intelligent encryption mode for payment installment
  • Main board and control box to be connected by HDMI interface cable instead of flat cable for more convenient connection;
  • Optimized looping embroidery control algorithm and high-speed looping drive technology to realize super high-speed rotation at 1200rpm;
  • Support flat & looping embroidery double main shaft drive function;
  • Support 2H/3H axis drive function;
  • Support looping stepping closed loop color-changing function;
  • Support flat & looping embroidery double color-changing function
  • Support custom-made and special needle height potentiometer DW320 for looping embroidery;
  • Support looping & flat embroidery combination function;
Mini mixed coiling embroidery machine MFCL-10901

Product specifications:

  • Model: MFCL-10901
  • Number of coiling needle:1
  • Number of flatbed needle: 9
  • Number of head:1
  • Maximum flat speed:1200SPM
  • Maximum chenille speed:800 SPM
  • Embroidery area: 500mm X 400mm
  • Machine package  dimension: 140mmX890mmX1050mm
  • Gross weight: 240 Kgs
  • Net weight: 190 Kgs

Technical Parameters:

  • Suitable for flatbed, coiling embroidery work.
  • Maximum embroidery area: 500 mm x 400 mm
  • Machine reads multiple design formats, such as DST, DSB, ZSK formats and more
  • Multiple USB input or direct transmission from PC via LAN port or wireless
  • Networkable and Wi-Fi capable
  • Main shaft motor- Servo motor
  • Stepping closed-loop motor for X & Y axis driving to ensure more exquisite embroidery.
  • Stepping motor color change
  • Stepping motor trimming
  • Stepping motor hooking
  • Stepping motor Jumping
  • Upper-thread holding system
  • Vision camera positioning system available
  • Infrared safety induction system available
  • Heavy duty steel stand with wheels to ensure stability and mobility
  • Reinforced aluminum thread stand to reduce vibration
  • Laser trace device
  •

Display Features:

  • Dahao 10.1” HD True Color Touch Panel
  • Memory capacity: 200 million stitches or 500 designs
  • Intelligent and sensitive TB Detection: Wheel plus spring
  • 85-265V Self-adaptable power supply
  • WIFI connection available
  • Multiple hoop sizes for a variety of embroidery needs
  • Compact size of Integrated control system
  • High-speed closed- loop stepping driving technology
  • Preset hoop parameters designed to avoid hitting hoops
  • Automatic memory retention
  • Signature or photo embroidery are available
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, Germany, Russian, Italian, Thai, Arabic, Farsi

Baobo Industry Complex, Dongkeng Town, Dongguan, 523445, China

86-750-2627132
0086-13562367708

info@cblenb.com

Copyright 2025 | All Rights Reserved
